Electric Reach
Stacker

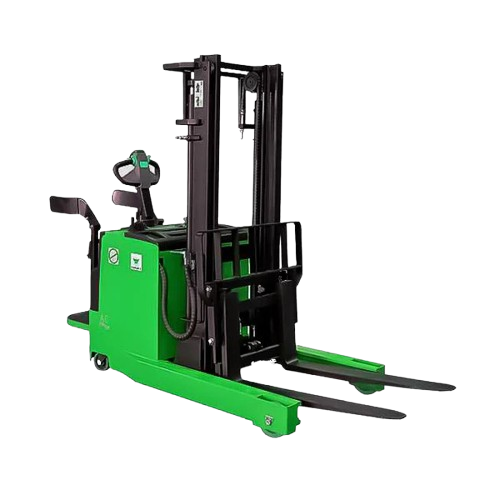

Pronix Electric Reach
Stacker 1.5 Ton

Max Height

↑ 3.5m Lifting Height

Product Description

  • Pronix Electric Reach Stacker 1.5 Ton Lifting Height 3500mm PNXRS-1535 is a hardworking tool, perfect for any warehouse.
  • With 1500 Kg capacity, a 500mm Load Center, and a double mast, you have the power to lift to heights up to 3500mm.
  • The rebirth system moves, and electric butterfly release ensure easy maneuverability, both with a ground clearance of 45mm, as well as a wheelbase of 460mm and a min. turning radius of R 1785.
  • The AC-Speed control and a 3kW lift motor provides the power to lift with ease.
  • It offers high performance and reliability with its AC-speed control system, high-output 1.5 kW traction motor, and 3 kW lift motor.
  • This stacker also features a240kg battery and 40A 24V battery charger, all while weighing 2000kg. It offers high performance and reliability with its AC-speed control system, high-output 1.5 kW traction motor, and 3 kW lift motor.

Specifications:

  • • Brand : Pronix
  • • Type : Reach Stacker
  • • Model No. : PNXRS-1535
  • • Capacity : 1500 Kg
  • • Load Center : 500 mm
  • • Mast : Double Mast
  • • Brake Way : Rebirth System Moves + Electric at Butterfly Release
  • • Tyre Type : Polyurethane
  • • Front Tyre Dimensions : 180 x 55 mm
  • • Rear Tyre Dimensions : 130 x 55 mm
  • • Traction Wheel : 230 x 75 mm
  • • Wheelbase : 460 mm
  • • Wheelbase (Load wheel/Balance) : 1480 mm
  • • Ground Clearance : 45 mm
  • • Reach Distance : 590 mm
  • • Travel Position Tiller Height : 1300 mm
  • • Lift Height : 3500 mm
  • • Closed Height : 2220 mm
  • • Fork Clearance from Ground : 35 mm
  • • Fork Dimensions : 920 x 100 x 35 mm
  • • Total Length : 2230 mm
  • • Total Width : 1050 mm
  • • Fork Adjustable : 200 - 620 mm
  • • Fork Tilt (Forward / Back) : 2° / 4°
  • • Min. Turning Radius : R1785
  • • Min. Turning Radius (Open Pedal) : R2160
  • • Aisle Width for Pallets : 2730 mm
  • • Lifting Speed (Load / Unload) : 150 / 100 mm/s
  • • Lowering Speed (Load / Unload) : 500 mm/s

Model Comparison

Technical Specifications Overview

Specification PNXEFL – 3030 PNXEFL – 3045
Load Capacity (kg) 3000 3000
Lift Height (mm) 3000 4500
Load Centre Distance (mm) 500 500
Wheel Base (mm) 1760 1760
Free Lift (mm) 1330 1405
Turning Radius (mm) 2450 2450
Tyre SOLID (Single) SOLID (Single)
Battery Voltage (V/ah) 80V, 280/330 Ah 80V, 280/330 Ah
Battery LITHIUM-ION LITHIUM-ION
